Details:-
- Using high-current relay, AC250V 10A DC30V 10A.
- Contact some independent wiring, safe and reliable.
- The standard interface can be extended to a variety of development boards.
- With fixed screw holes for easy installation.
- Suitable for a variety of platforms such as 8051/AVR/AVR/ARM.
Details:-

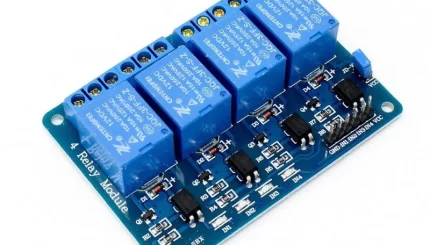

- 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
- Both controlled by 12V and 5V input Voltage.
- Equipped with high-current relay, AC250V 10A ; DC30V 10A.
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
- Indication LED’s for Relay output status.

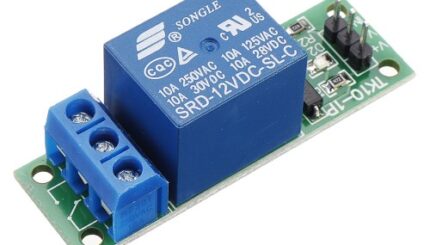

Details:-
- Brand new and high quality.
- 1-Channel Relay interface board,
- Equipped with high-current relay : 15A @ 125V AC or 10A @ 250V AC
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM)

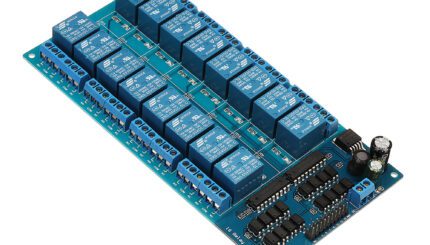

Details:-
- 5V relay with AC contact capacity of 10A 250V and optocoupler protection.
- Onboard power supply module does not need an external power supply. I / O port driver is active low.
- The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
- It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
- The 1-16 road can be any full on/off or any road.
- All interfaces can be directly connected through the terminal leads, very convenient.
Details :-
- Product: NUCLEO-F042K6 Development Board
- Extension with Arduino™ nano connectivity
- On-board ST-LINK/V2-1 debugger/programmer with SWD connector – USB VBUS, external source
- USB communication (LD1), power LED (LD2), user LED (LD3)

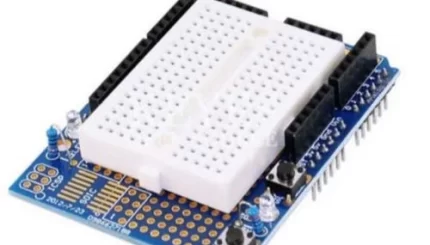

- It has a nice standard 0.1″x0.1″ prototyping grid with big pads
- Comes with Stacking headers and plain header, choose whichever you want when soldering together
- An IC pattern for adding DIP ICs up to 20 pins
- Power rails down the middle and sides
- A reset button and an extra general use button
- Two 3mm general use LEDs, red and green, as well as 2 matching resistors
- Built-in Micro-USB, with flash and reset switches, easy to program
- Wireless 802.11 supported, direct download no need to reset
- Arduino compatible works great with the latest Arduino IDE/Mongoose IoT/Micropython
- WiFi at 2.4GHz, support WPA / WPA2 security mode
- Supports GPIO, PWM, I2C, SPI, UART and ADC.
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Power supply and relay instructions, lit, the disconnect is off;
- The input signal, signal, common Terminal and start conducting;
- Useful for appliance control;
- DC or AC signal, control, you can control the 220V AC load;
- There is a normally open and one normally closed contact;
- The module is compliant with international safety standards, control and load areas isolation trenches.
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Power supply and relay instructions, lit, the disconnect is off;
- The input signal, signal, common Terminal and start conducting;
- Useful for appliance control;
- DC or AC signal, control, you can control the 220V AC load;
- There is a normally open and one normally closed contact;
- The module is compliant with international safety standards, control and load areas isolation trenches.
