Details:-
- Adjustable sensitivity
- Output LED indicator
- Compatible with Arduino
Arduino Uno R3 Development Kit – Advanced Series
Details:-
- Great for running innovative projects with Arduino
- Can be used to create over 20 projects
- Comes in durable storage box
- A variety of components are included in this pack to try out different projects.
- The kit comes with 47 unique quality components assured by Smartiphi.
- All-in-one kit, a great advanced kit for innovating new projects.
- Uno Microcontroller ATmega328 (SMD) – Interface CH340G
Arduino Uno R3 Development Kit – Intermediate Series
Details:
- Great for Starting with Arduino Programming
- Can be used to create over 15 projects
- Comes in durable storage box
- A variety of components are included in this pack to try out different projects.
- The kit comes with 26 unique quality components assured by Smartiphi.
- All-in-one kit, a great starter kit for learning to code.
- Uno Microcontroller ATmega328 (SMD) – Interface CH340G

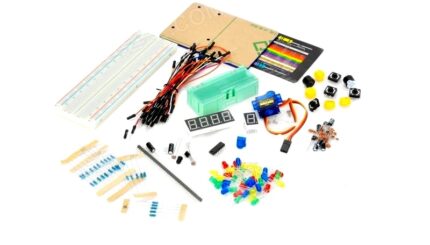

Electronics Components kit – Advanced
- This Kit comes with all Advance components and one Acrylic plate and servo motor.
- Find all the component and their quantity details in description below

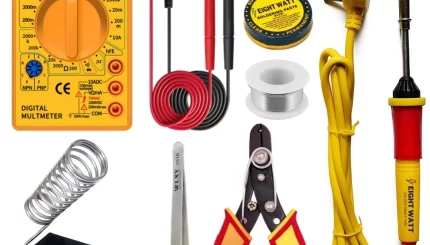

Soldering iron kit with Multimeter
The Kit contains:
- Multimeter: DT830D Digital Multimeter With Lcd Display
- Soldering Iron: 25 Watt
- Soldering Wire
- wire cutter stripper
- Desoldering wick
- Soldering Stand
- Soldering flux
- Tweezer
5 in 1 Sensor Kit for Arduino
Details:
- Contains 5 most frequently used sensors
- Budget friendly sensor kit.
- Can be used with Arduino, Raspberry Pi, NodeMCU and ESP32 etc
- Easy to use and learn with multiple project options.
- Suitable for beginners to advance skill level and can be used for prototyping purposes.
- The DIY sensors learning kit will help you bring out creative and innovative electronics and engineering projects.
37 in 1 Sensor Kit for Arduino
Details:-
- For young innovators who are interested in amazing world of DIY projects using Arduino
- A comprehensive kit having 37 most commonly used sensors and other useful components
- Good quality sensors
- Attractive packaging
- Detailed instructions included

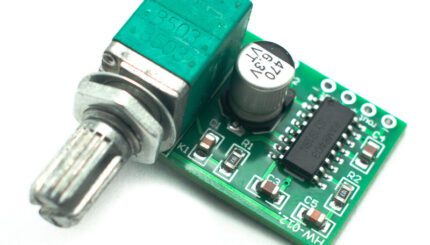

PAM8403 with Output Controlling Potentiometer
Details:-
- Operating voltage: 2.5V-5.5V
- Maximum output power: 3W x 2
- PCB size is about: length 30mm width 22mm overall height after installed is about 16mm
- Built with switch Potentiometer, can adjust the volume & control power switch freely!
- Flexible assembly usage.
Teensy 4.1 Development Board
Details:-
- ARM Cortex-M7 at 600MHz
- 1024K RAM (512K is tightly coupled)
- 8 Mbyte Flash (64K reserved for recovery & EEPROM emulation)
- USB Host Port
- 2 chips Plus Program Memory
- 55 Total I/O Pins
Teensy 3.2 Development Board
Details:-
- 32 bit ARM Cortex-M4 72 MHz CPU (M4 = DSP extensions)
- 256K Flash Memory, 64K RAM, 2K EEPROM
- 21 High-Resolution Analog Inputs (13 bits usable, 16-bit hardware)
- 1x 12 bit DAC Analog output
- 34 Digital I/O Pins (16 shared with analog)
- 12 PWM outputs
- 7 Timers for intervals/delays, separate from PWM
- USB with dedicated DMA memory transfers
- 3 UARTs (serial ports)
- SPI, 2x I2C, I2S, IR modulator
- I2S (for the high-quality audio interface)
- CAN Bus
- Real Time Clock (with user-added 32.768 crystal and battery)
Teensy 3.5 Development Board
Details:-
- 120MHz ARM Cortex-M4 with Floating Point Unit
- 512K Flash, 192K RAM, 4K EEPROM
- Microcontroller Chip MK64FX512VMD12
- 1 CAN Bus Port
- 16 General Purpose DMA Channels
- 5V Tolerance on All Digital I/O Pins
- 62 I/O Pins (42 breadboards friendly)
- 25 Analog Inputs to 2 ADC with 13-bit resolution
- 2 Analog Outputs (DAC) with 12-bit resolution
- 20 PWM Outputs (Teensy 3.6 has 22 PWM)
- USB Full Speed (12Mbit/sec) Port
- Ethernet mac, capable of full 100Mbit/sec speed
- Native (4-bit SDIO) micro SD card port
Teensy 3.6 Development Board
Details:-
- 180 MHz ARM Cortex-M4 with Floating Point Unit
- 1M Flash, 256K RAM, 4K EEPROM
- Microcontroller Chip MK66FX1M0VMD18
- USB High Speed (480Mbit/sec) Port
- 2 CAN Bus Ports
- 32 General Purpose DMA Channels
- 22 PWM Outputs
- 4 I2C Ports
- 11 Touch-Sensing Inputs
- 62 I/O Pins (42 breadboards friendly)
Teensy 4.0 Development Board
Details :-
- ARM Cortex-M7 at 600 MHz
- 1024K RAM (512K is tightly coupled)
- 2048K Flash (64K reserved for recovery & EEPROM emulation)
- 2 USB ports, both 480 MBit/sec

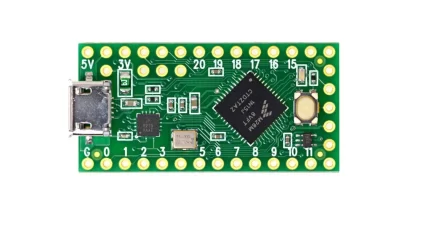

Teensy LC USB Micro-controller Development Board
Details:-
- 32 bit ARM Cortex-M0+ 48 MHz CPU
- 62kB Flash Memory, 8kB RAM, 1/8(emu)kB EEPROM
- 13 High-Resolution Analog Inputs
- 27 Digital I/O Pins (NOT 5V Tolerant)
- 10 PWM outputs
- 7 Timers for intervals/delays, separate from PWM
- 3 UARTs (serial ports)
- SPI, I2C, I2S
- I2S (for the high-quality audio interface)
Original: Arduino UNO R3 DIP Development Board with ATmega328a
Details:-
- Micro-controller : Arduino Uno R3 ATmega328.
- Operating Voltage : 5V.
- Input Voltage (recommended) : 7-12V.
- Digital I/O Pins : 14 (of which 6 provide PWM output).
- Analog Input Pins : 6.
Arduino NANO V3.0 Development Board – clone compatible
Details:-
- Product: Arduino NANO
- Model: Nano V3.0 CH340
- Processor: ATmega328
- Operating Voltage: 5V
- Best for your electronic projects
- Tiny size makes it perfect for compact projects.
Lilypad 328 Main Board Atmega328P 16M Compatible with Arduino
Details:-
- Microcontroller: ATmega168 or ATmega328V
- Operating Voltage: 2.7-5.5 V
- Digital I/O Pins: 14
- PWM Channels: 6
- Analog Input Channels: 6
- DC Current per I/O Pin: 40 mA
- Board will run from 2V to 5V.
- The latest version of the LilyPad supports automatic reset for even easier programming.
- The back side of the LilyPad is now completely flat!
Expansion Breakout Board 328P IO Shield For Arduino Nano
Details:
- Compatible with Arduino NANO
- All digital and analog pins breakout
- Compact size;
- External power supply current support
- Leads all pins out, convenient for wiring and doing experiments.
12V 4 Channel Relay Module (with Optocoupler) (Copy)
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Power supply and relay instructions, lit, the disconnect is off;
- The input signal, signal, common Terminal and start conducting;
- Useful for appliance control;
- DC or AC signal, control, you can control the 220V AC load;
- There is a normally open and one normally closed contact;
- The module is compliant with international safety standards, control and load areas isolation trenches.
12V 4 Channel Relay Module (with Optocoupler)
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Power supply and relay instructions, lit, the disconnect is off;
- The input signal, signal, common Terminal and start conducting;
- Useful for appliance control;
- DC or AC signal, control, you can control the 220V AC load;
- There is a normally open and one normally closed contact;
- The module is compliant with international safety standards, control and load areas isolation trenches.
