OLED Display Module - 0.96 Inch I2C/IIC 4 Pin Blue

Name: OLED Display Module - 0.96 Inch I2C/IIC 4 Pin Blue
Brand: Smartiphi
SKU: 8364
Price: 210 INR
Availability: OutOfStock

Part of Smartiphi's Modules, Display Module catalog for electronics projects, labs, classrooms, prototypes and DIY builds.

Currently out of stock Modules

₹210 ~~₹260~~ (inc. GST)

Currently out of stock

Display size: 0.96″ Resolution radio:128 x 64 Interface modes: I2C/IIC Working voltage: 3.3V Control Chip: SSD1306

Ask about availability Ask compatibility Continue shopping

Category: Display Module, Modules Support: Phone and email help available before and after purchase. Modules Display Module

Why buy from Smartiphi

Project fit helpAsk if this part matches your board, kit, module, power supply or classroom build.

ModulesExplore nearby parts across Modules, Display Module before finalizing your basket.

Bulk and lab ordersShare quantity, GST invoice and delivery requirements before placing larger orders.

Secure checkoutCart, checkout and account pages stay on the full WooCommerce order flow.

Before you add it to a project

Use these checks to decide whether this part fits the board, power setup, enclosure and quantity you are planning.

Compatibility checkCheck operating voltage, output interface, library support and mounting space before using this module in a project.

Project basketPair it with supporting boards, wiring, power, tools and related Modules, Display Module parts where needed.

Fulfillment noteThis item may need stock confirmation. Contact Smartiphi with quantity and project timeline before planning around it.

Support pathFor classroom, lab or bulk use, share the product URL, quantity and target project with Smartiphi support.

Product details

Product familyModules, Display Module

Stock signalCurrently out of stock

Order typeDirect product order

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel display

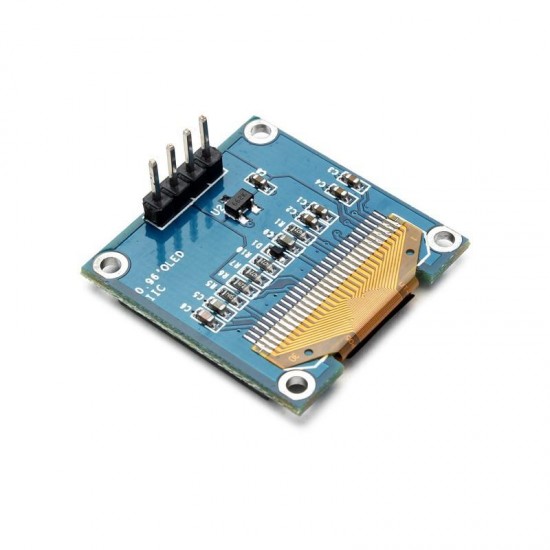

This 0.96 Inch I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I²C protocols. It is having a resolution of 128×64. The package includes display board, display, 4 pin male header pre-soldered to board.

OLED monochrome 128×64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

Interface pin for 4 PIN 128×64 OLED

VCC: 3.3 volts – 5 Volts
GND: Ground
SCL: Serial Clock
SDA: Serial Data

Features of 4 pin 128 x 64 OLED Display

Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Display size: 0.96″
Resolution radio:128 x 64
Interface modes: I2C/IIC
working voltage: 3.3V
Control Chip: SSD1306

Package Includes:

1 x 0.96 Inch I2C IIC 4pin OLED Display Module BLUE
