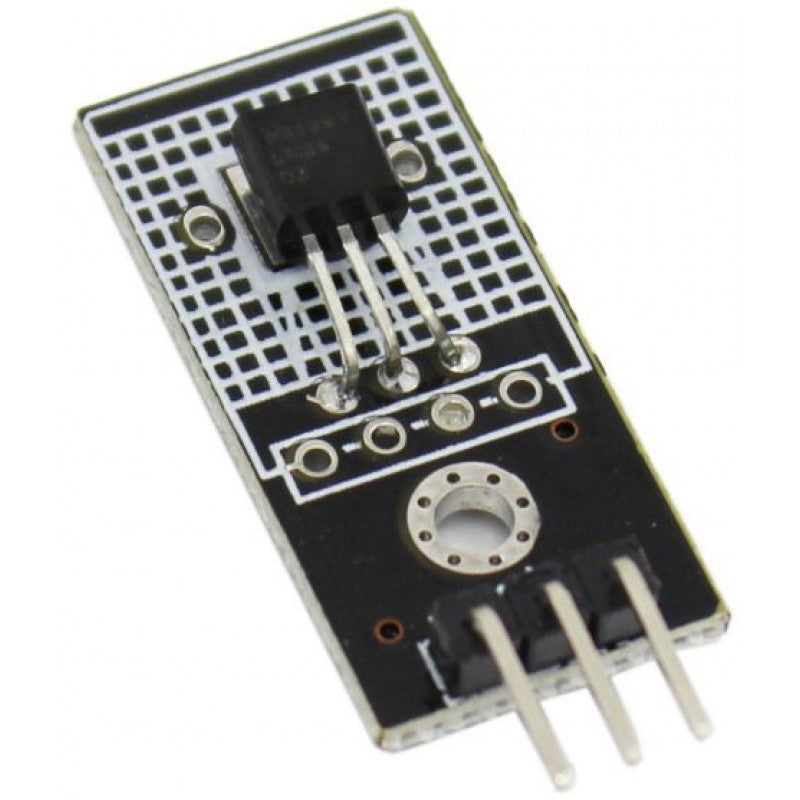

LM35D Analog Temperature Sensor Module

LM35 is a precision IC temperature sensor with its output proportional to the temperature (in °C). The sensor circuitry is sealed and therefore it is not subjected to oxidation and other processes. With LM35, the temperature can be measured more accurately than with a thermistor!!!

It also possesses the low self-heating and does not cause more than 0.1 °C temperature rise in still air. The operating temperature range is from -55°C to 150°C. The output voltage varies by 10mV in response to every °C rise/fall in ambient temperature, i.e., its scale factor is 0.01V/°C.

It is commonly used as a temperature measurement sensors. It includes thermocouples, platinum resistance, thermal resistance and temperature semiconductor chips, which commonly used in high-temperature measurement thermocouples. The LM35D linear temperature sensor and sensor-specific expansion of Arduino board, in combination, can be very easy to achieve.

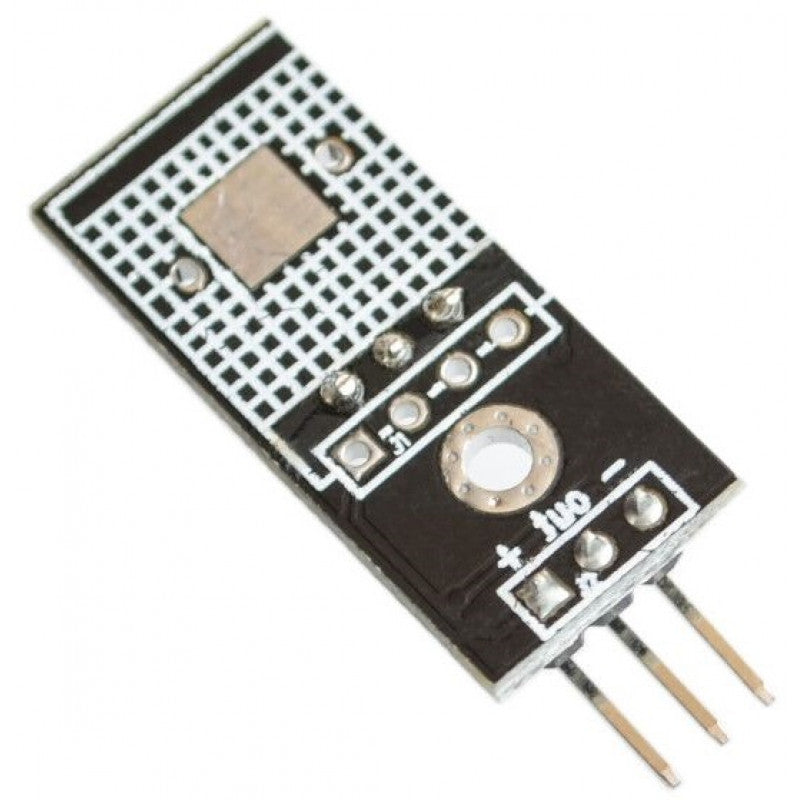

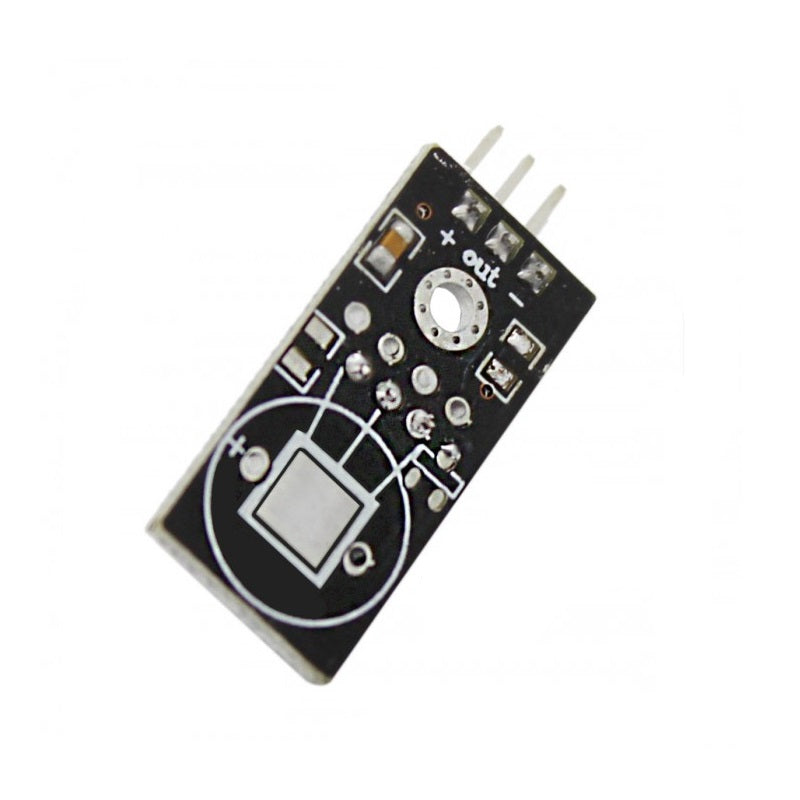

Wiring Instructions of LM35D Analog Temperature Sensor Module :-

• “+”: Positive power supply
• “–“: Negative one
• “out”: pick AD converter module analog signal input terminal or directly connected to the multimeter to measure

Specifications & Features of LM35D Analog Temperature Sensor Module :-

• Based on the semiconductor LM35 temperature sensor
• Useful in detecting ambient air temperature
• Calibrated directly in ° Celsius (Centigrade)
• Linear + 10 mV/°C Scale Factor
• 0.5°C Ensure accuracy (at +25°C)
• Low power consumption, less than 60uA
• Low output impedance, 1mA current through only 0.1Ω
• With screw holes for easy installation and fixed. Aperture 2.6mm
